Embed body data into your product.

Sizewall provides a REST API for launching body measurement scans from your application, retrieving structured measurement data and optionally downloading a 3D body model.

Request API credentials →

Overview

Overview

Sizewall lets you launch scans directly from your app, receive a seamless redirect back when the user is done, get webhook notifications and retrieve structured measurements via REST. The 3D model in OBJ format is optional.

Why integrate Sizewall

  • Launch scans directly from your app
  • Seamless redirect after scan completion
  • Real-time webhook notifications
  • Structured measurements via REST
  • Optional 3D model access

Integration flow

Integration flow

Six steps from user click to stored measurement.

  1. 01

    Create profile

    One profile per end user in Sizewall.

  2. 02

    Create session

    The session generates a one-time ticketUrl.

  3. 03

    Redirect the user

    Send the user to the Sizewall scanner in a browser or webview.

  4. 04

    User scans

    Two photos are captured and processed by our AI.

  5. 05

    Redirect + webhook

    We send the user back and ping your webhook.

  6. 06

    Retrieve measurements

    Measurement data and optional 3D model are fetched via API.

User Experience

User Experience

Two screens sit between your app and the Sizewall scanner — one to start, one when the user comes back.

1. Start Scan

When your backend creates a session, it receives a ticketUrl. Open this URL in a browser or webview.

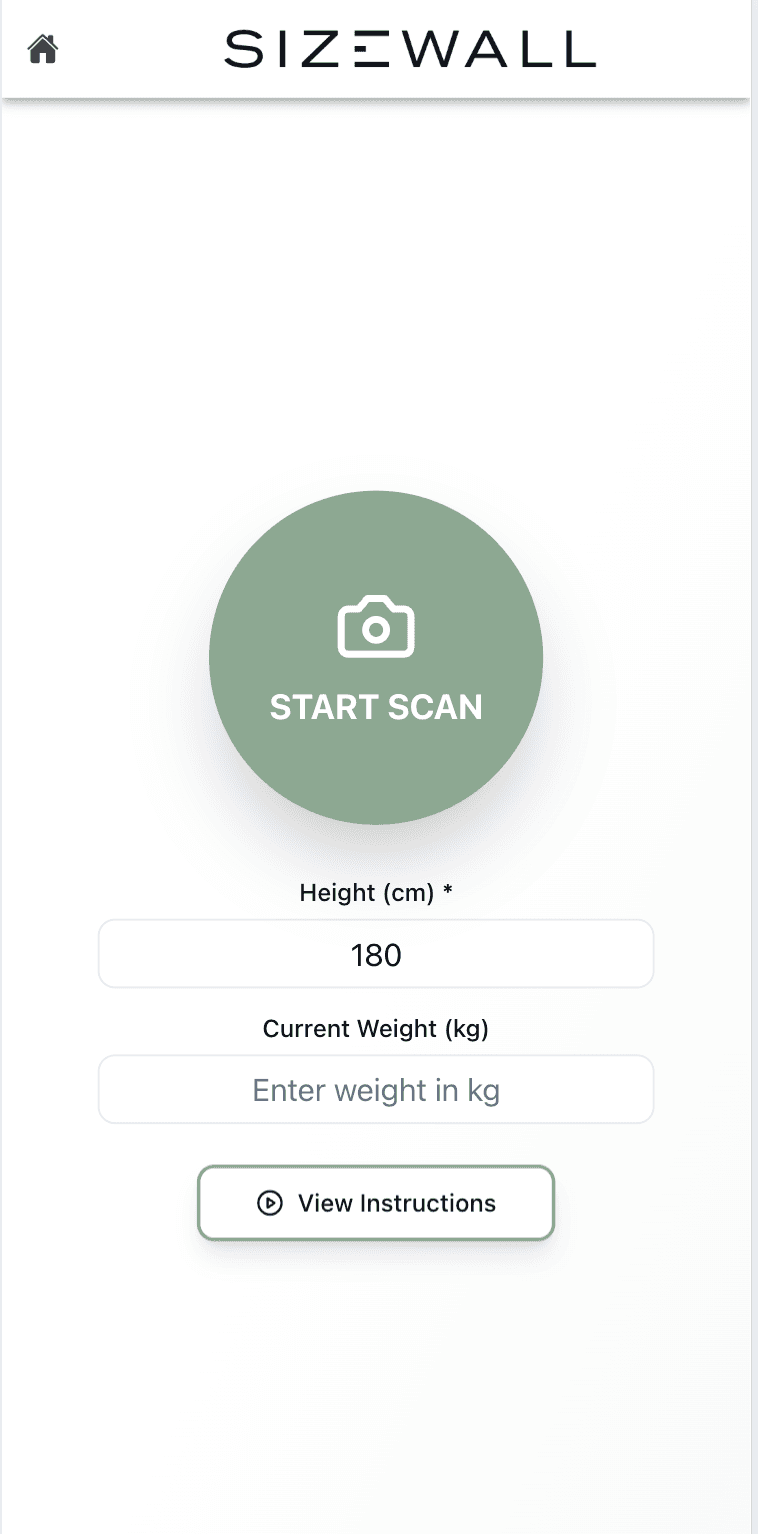

Start Scan screen

2. Back To Your App / Site

When scanning is complete, Sizewall redirects the user back using the redirect URL you provided.

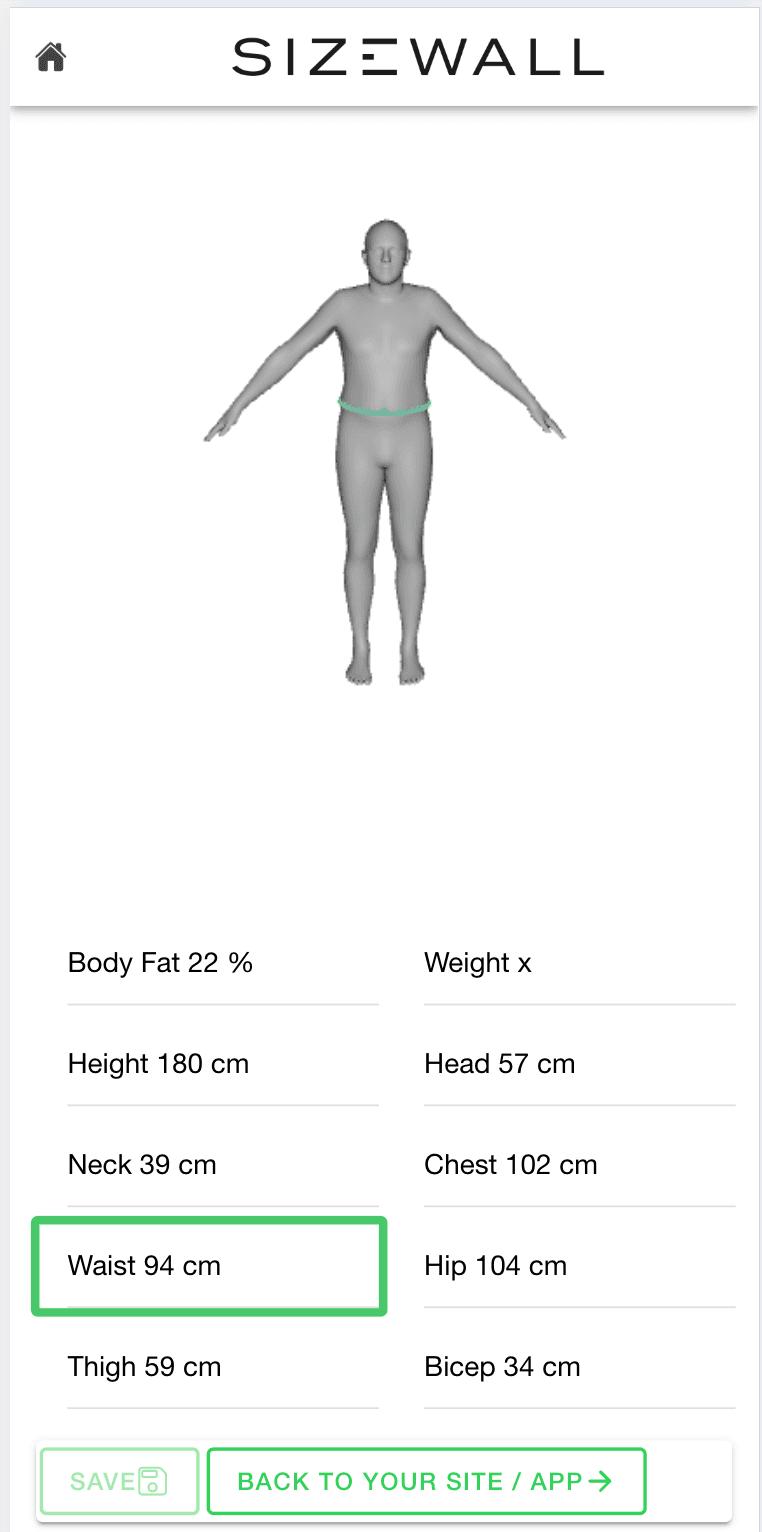

Scan results screen

At this point your system can display a "Processing" or "Results ready" screen. You retrieve measurement data via API. We recommend listening for the webhook notification to confirm processing completion.

Concepts

Core concepts

Four resources make up the Sizewall API.

  • 01

    Profile

    Represents a user in Sizewall. You create one profile per end user.

  • 02

    Session

    A single scan attempt. Generates a one-time ticketUrl, supports redirect and webhook URLs, short-lived and single-use.

  • 03

    Measurement

    Processed scan results — structured body measurements (waist, chest, hip, etc.) and optional composition values such as body_fat.

  • 04

    3D model

    Optional OBJ (Wavefront) 3D body model generated from the scan. Available per measurement via a dedicated endpoint.

Authentication

Authentication

Sizewall uses secure machine-to-machine authentication via OAuth2 Client Credentials, issued through Microsoft Entra ID. All requests require a Bearer token in the Authorization header. Tokens are short-lived and must be refreshed before they expire.

Header
Authorization: Bearer ACCESS_TOKEN

Quickstart

Quickstart

Seven steps from first call to downloaded 3D model.

  1. 01Create a Profile with user details
  2. 02Create a Session with redirect and webhook URLs
  3. 03Redirect the user to the ticketUrl in a browser or webview
  4. 04Handle the redirect callback and webhook notification
  5. 05Retrieve measurements via API once the scan is complete
  6. 06Map measurement data to your product experience
  7. 07Optionally download the 3D model in binary, Base64 or JSON format
Example — create session
curl -X POST https://api.sizewall.com/v1/profiles/{profileID}/sessions \
  -H 'Authorization: Bearer ACCESS_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
    "redirectUrl": "https://app.example.com/scan/complete",
    "webhookUrl": "https://api.example.com/sizewall/webhook"
  }'

Webhooks

Webhooks

When a session completes, Sizewall POSTs to your webhook with the session.completed event. Each webhook includes a unique eventId — store processed IDs and check for duplicates before acting on the payload.

Payload
{
  "type": "session.completed",
  "eventId": "evt_01H9X...",
  "createdAt": "2026-05-25T09:14:21Z",
  "profileID": "prf_...",
  "sessionID": "ses_...",
  "measurementID": "mea_...",
  "status": "success",
  "error": null,
  "links": { "measurement": "..." }
}

Best practices

Best practices

  • 01Create a new session per scan — sessions are single-use
  • 02Use webhooks instead of polling for reliable notifications
  • 03Store profile IDs to link measurements to users
  • 04Handle redirects gracefully with loading states
  • 05Keep tokens secure and refresh before they expire
  • 06Implement exponential backoff for retries
  • 07Use eventId for idempotent webhook processing

API reference

API reference

REST endpoints, grouped by resource.

Base URL

https://api.sizewall.com/v1

Authentication

Bearer token (OAuth2 Client Credentials, Microsoft Entra ID)

Profiles

  • POST/profilesCreate a new profile
  • GET/profiles/{profileID}Retrieve a profile
  • PUT/profiles/{profileID}Update a profile
  • DELETE/profiles/{profileID}Delete a profile
  • GET/profiles/{profileID}/linkRetrieve or generate shareable link
  • POST/profiles/{profileID}/linkGenerate a new shareable link

Sessions

  • POST/profiles/{profileID}/sessionsStart a new session for a profile (optional webhookUrl)
  • GET/profiles/{profileID}/sessions/{sessionID}Retrieve session details

Measurements

  • GET/profiles/{profileID}/measurementsList all measurements for a profile
  • GET/profiles/{profileID}/measurements/{measurementID}Retrieve a specific measurement
  • DELETE/profiles/{profileID}/measurements/{measurementID}Delete a measurement
  • GET/profiles/{profileID}/measurements/{measurementID}/modelRetrieve 3D model for a measurement

HTTP status codes

  • 200OK (reads)
  • 201Resource created
  • 204OK (update / delete)
  • 400Invalid input
  • 401Missing or invalid token
  • 404Not found
  • 409Duplicate resource
  • 410Webhook URL invalid
  • 429Rate limit exceeded
  • 500Server error

Use exponential backoff (max 3 retries) for 429 and 5xx.

OpenAPI

OpenAPI spec

Full machine-readable specification in OpenAPI 3.0 format.

Download OpenAPI YAML ↓

Ready to start building?

Request API credentials and we'll help you get going.
